◆ Infinite farness and coaxial illuminate optical systems

◆ High-resolution and high definition

◆ Can observe different objects by using LED coaxial illumination or fiber optic illumination.

◆ Wildly used in electric equipments, semi-conductor, LCD，LED and etc. for digital image observation, inspection and measurement

		Can be custom-made pre-set stops at integer magnification with detent in zoom course Magnification positioned repeatedly and exactly with detents in zoom course, especially suitable for planar & three-dimensional inspection.
MZDH0850	MZDH0850
		C: Coaxial illumination, ● Excellent coaxial illumination, especially suitable for manufacture, inspection of LCD and observation of reflective objects.
MZDH0850C	MZDH0850C
		◆ The system using stepper motor, elaborate to design signal control module to make sure accurate each time while zooming ◆ Precise motion mechanism which has high degree of repeatability and concentric degree of optical axis ◆ Excellent performance, high resolution, low distortion ◆ Compact design, easy to assemble and install
MZDH0850-AY	MZDH0850-AY
Other types

Main Body Diagram

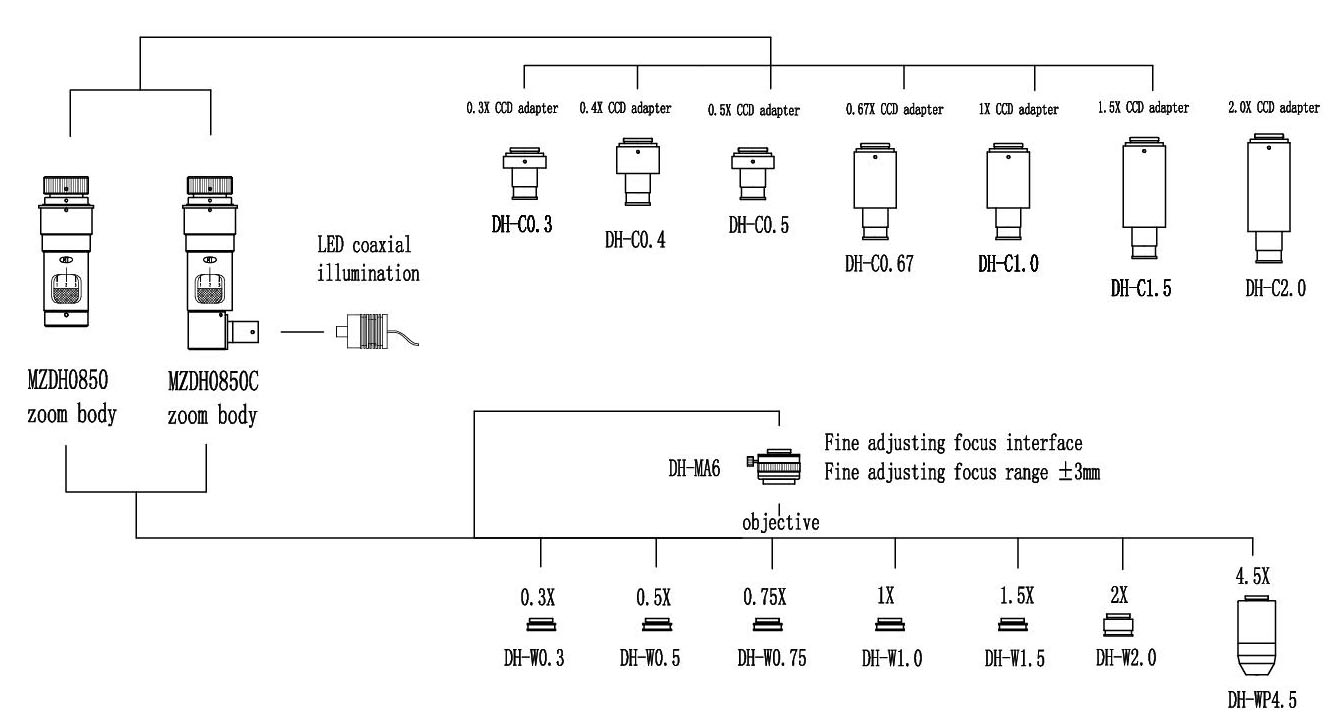

MZDH0850 series configuration form

Part	Specification	MZDH 0850	MZDH 0850C	MZDH 0850-D	MZDH0850C-PL	MZDH0850C-MA	MZDH0850C-SA	MZDH0850-AZ
Zoom body	Zoom range 0.75X~5X	●	●	●	●	●	●	●
Objectives	0.3X	○	○	○	○	○	○	○
	0.4X	○	○	○	○	○	○	○
	0.5X	○	○	○	○	○	○	○
	0.6X	○	○	○	○	○	○	○
	0.75X	○	○	○	○	○	○	○
	0.9X	○	○	○	○	○	○	○
	1X	●	●	●	●	●	●	●
	1.5X	○	○	○	○	○	○	○
	2X	○	○	○	○	○	○	○
CCD adapters	0.3X	○	○	○	○	○	○	○
	0.4X	○	○	○	○	○	○	○
	0.5X	○	○	○	○	○	○	○
	0.67X	○	○	○	○	○	○	○
	1X	●	●	●	●	●	●	●
	1.5X	○	○	○	○	○	○	○
	2X	○	○	○	○	○	○	○
Illuminators	Coaxial illuminator: MLC1000	X	●	X	●	●	●	X
Illuminators	Adjustable LED illuminator: MLR25	○	○	○	○	○	X	○
Micrometer adapters	1X stage micrometer adapter	○	○	○	○	○	○	○
Others	With detents at integer position	○	○	●	○	○	○	○
	With polarizer lens	○	○	○	●	○	○	○
	With fine-adjustable devicce	○	○	○	○	●	X	○
	Light path 180° transition	○	○	○	○	○	●	○
	Electromotion zoom	○	○	X	○	○	○	●
Holder and main body matching dimension	Φ45mm	●	●	●	●	●	●	●
Standard thread infinite farness metallographic lens	Nikon、Olympus、Mitutoyo	○	○	○	○	○	○	○
NOTES：1. ●standard outfit ○optional accessories X no configuration 2. CS mount for CCD(CMOS).

Magnification	NA	DOF	Resolution	Distortion	Fixed Dim.:Φ45mm Max compatible camera:1/2" CCD screw mount: 1 inch 32 button
0.75X	0.03	1.8mm	11.2μm	0.26%
2.0X	0.067	0.30mm	5.0μm	0.31%
5.0X	0.097	0.08mm	3.5μm	0.12%

Objectives	Item	CCD adapter
Objectives	Item	0.3X	0.4X	0.5X	0.67X	1X	1.5X	2X
0.3X WD:293mm	Optical. Mag.	0.07X～0.45X	0.09X～0.6X	0.11X～0.75X	0.15X～1X	0.225X～1.5X	0.34X～2.25X	0.45X～3X
0.3X WD:293mm	FOV(mm)	51.4X68.6～8X10.67	40X53.33～6X8	32.7X43.6～4.8X6.4	24X32～3.6X4.8	16X21.3～2.4X3.2	10.6X14.12～1.6X2.13	8X10.67～1.2X1.6
0.4X WD:223mm	Optical. Mag.	0.09X～0.6X	0.12X～0.8X	0.15X～1X	0.2X～1.34X	0.3X～2X	0.45X～3X	0.6X～4X
0.4X WD:223mm	FOV(mm)	40X53.33～ 6X8	30X40～ 4.5X6	24X32～ 3.6X4.8	18X24～2.69X3.58	12X16～ 1.8X2.4	8X10.67～1.2X1.6	6X8～0.9X1.2
0.5X WD:175mm	Optical. Mag.	0.11X～0.75X	0.15X～1X	0.19X～1.25X	0.25X～1.675X	0.375X～2.5X	0.56X～3.75X	0.75X～5X
0.5X WD:175mm	FOV(mm)	32.7X43.6～4.8X6.4	24X32～3.6X4.8	18.9X25.3～2.88X3.84	14.4X19.2～2.15X2.9	9.6X12.8～1.44X1.92	6.4X8.6～0.96X1.28	4.8X6.4～0.72X0.96
0.6X WD:145mm	Optical. Mag.	0.14X～0.9X	0.18X～1.2X	0.225X～1.5X	0.3X～2X	0.45X～3X	0.68X～4.5X	0.9X～6X
0.6X WD:145mm	FOV(mm)	25.7X34.3～4X5.33	20X26.67～3X4	16X21.33～2.4X3.2	12X16～1.8X2.4	8X10.67～1.2X1.6	5.3X7.06～0.8X1.07	4X5.33～0.6X0.8
0.75X WD:117mm	Optical. Mag.	0.17X～1.125X	0.225X～1.5X	0.28X～1.875X	0.4X～2.5X	0.56X～3.75X	0.84X～5.625X	1.125X～7.5X
0.75X WD:117mm	FOV(mm)	21.2X28.2～3.2X4.27	16X21.33～2.4X3.2	12.9X17.1～1.92 X2.56	9X12～1.44 X1.92	6.4X8.6～0.96X1.28	4.3X5.7～0.64X0.85	3.2X4.27～0.48X0.64
0.9X WD:93mm	Optical. Mag.	0.2X～1.35X	0.27X～1.8X	0.34X～2.25X	0.45X～3X	0.675X～4.5X	1.01X～6.75X	1.35X～9X
0.9X WD:93mm	FOV(mm)	18X24～2.67X3.56	13.33X17.78～2X2.67	10.6X14.1～1.6X2.13	8X10.67～1.2X1.6	5.3X7.1～0.8X1.07	3.56X4.7～0.53X0.71	2.67X3.56～0.4X0.53
1X WD:83mm	Optical. Mag.	0.225X～1.5X	0.3X～2X	0.375X～2. 5X	0.5X～3.35X	0.75X～5X	1.125X～7.5X	1.5X～10X
1X WD:83mm	FOV(mm)	16X21.3～2.4X3.2	12X16～1.8X2.4	9.6X12.8～1.44X1.92	7.2X9.6～1.07X1.4	4.8X6.4～0.72X0.96	3.2X4.27～0.48X0.64	2.4X3.2～0.36X0.48
1.5X WD:54mm	Optical. Mag.	0.34X～2.25X	0.45X～3X	0.5625X～3.75X	0.75X～5X	1.125X～7.5X	1.6875X～11.25X	2.25X～15X
1.5X WD:54mm	FOV(mm)	10.6X14.1～1.6X2.13	8X10.67～1.2X1.6	6.4X8.53～0.96X1.28	4.8X6.4～0.72X0.96	3.2X4.27～0.48X0.64	2.13X2.84～0.32X0.43	1.6X2.13～0.24X0.32
2X WD:35mm	Optical. Mag.	0.45X～3X	0.6X～4X	0.75X～5X	1X～6.7X	1.5X～10X	2.25X～15X	3X～20X
2X WD:35mm	FOV(mm)	8X10.7～1.2X1.6	6X8～0.9X1.2	4.8X6.4～0.72X0.96	3.6X4.8～0.54X0.72	2.4X3.2～0.36X0.48	1.6X2.1～0.24X0.32	1.2X1.6～0.18X0.24
4.5X WD:16mm	Optical. Mag.	1.01X～6.75X	1.35X～9X	1.69X～11.25X	2.26X～15.07X	3.37X～22.5X	5.06X～33.75X	6.75X～45X
4.5X WD:16mm	FOV(mm)	3.56X4.74～0.53X0.71	2.67X3.56～0.4X0.53	2.13X2.84～0.32X0.43	1.59X2.12～0.24X0.32	1.07X1.42～0.16X0.21	0.71X0.95～0.11X0.14	0.53X0.71～0.08X0.11
Zoom body magnification range: 0.75X～5X

	Auxiliary illuminators	MLC1000，MLR25
	CCD adapters	0.4X, 0.5X, 0.67X, 1.0X(Standard outfits),1.5X,2.0X
	Objectives	0.3X,0.4X,0.5X,0.6X,0.75X,0.9X, 1X(Standard outfits),1.5X,2.0X,4.5X
	Infinite farness metallographic lens	Nikon, Olympus, Mitutoyo
	Stands	SD1-D ~ SD18-D

		PL： Coaxial illumination with polarizing lens （Patent publication number:CN 202025119 U） ◆ Polarizer Lens is used to improve the contrast of video output and get the best contrast photograph. Especially fits for the condition of crystalloid inspection.
MZDH0850C-PL	MZDH0850C-PL
		MA： With fne-adjustable device （Patent publication number:CN 202049285 U） ◆ Attached with fine-adjustable device under objective. Can realize the functions of focus fine- adjusted rapidly in the condition of different focal plane observation.
MZDH0850C-MA	MZDH0850C-MA
		SA： Light path 180°transition （Patent publication number:CN 202049284 U） ◆Can observe special interspace conveniently or observe straitness distance mark between two points on subminiature objects.
MZDH0850 C-SA	MZDH0850C-SA
		C-UP： Coaxial illumination ◆ Excellent coaxial illumination, especially suitable for maufacture, inspection of LCD and observation of reflective objects.
MZDH0850C-UP	MZDH0850C-UP
		RA: Light path 90°transition
MZDH0850 RA	MZDH0850RA	RA: Light path 90°transition
